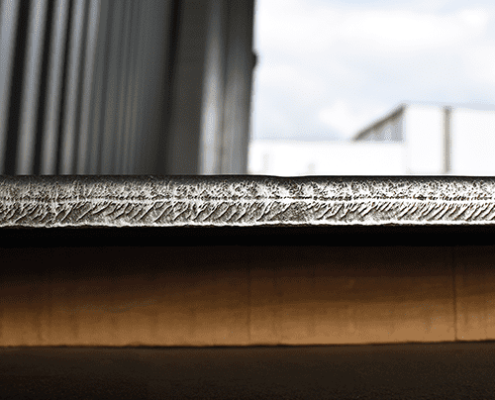

Hardplate™ FlowMax and Hardplate™ FlowMax Plus

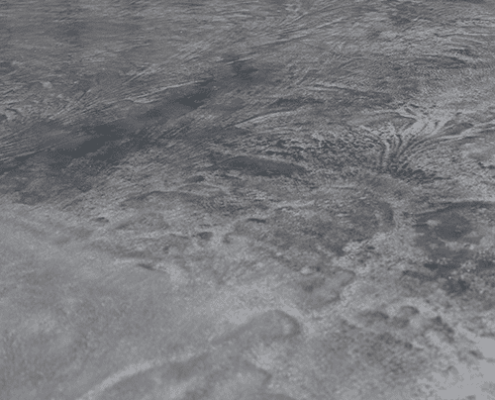

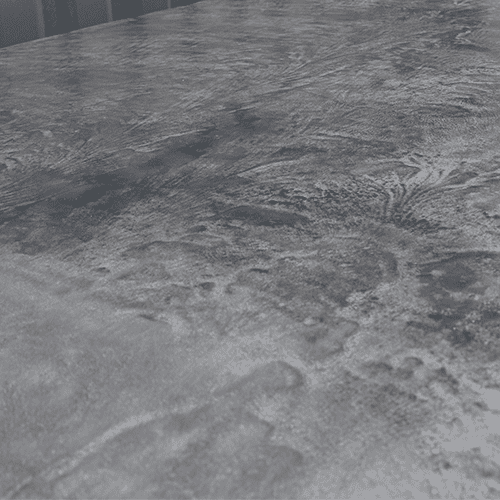

Hardplate™ FlowMax and Hardplate™ FlowMax Plus are smooth, crack free wear resistant plate products, designed for applications, where hang-up, carryback and impact occur in combination with abrasive wear.
Smooth wear resistant plates have a low coefficient of friction, meaning they offer better sliding properties compared to other types of wear resistant plates. A smooth crack free surface decreases the rate of wear through a reduction in micro turbulence and impact. As a result of decreasing wear rates, plants can benefit from reduced downtime and total cost of ownership.
Thanks to its unique formulation and improved metallurgical properties, Hardplate™ FlowMax Plus is best suited for applications that experience high levels of impact and abrasion, such as: bins, tray liners, hoppers, chutes and mobile equipment.
The smooth surface of both Hardplate™ FlowMax and Hardplate™ FlowMax Plus make them easy to clean and maintain, important for industries where hang-up and carryback occur due to reduced liner angles and naturally sticky material. The plates offer versatility and can be tailored to meet customer requirements for a number of different industries and applications.

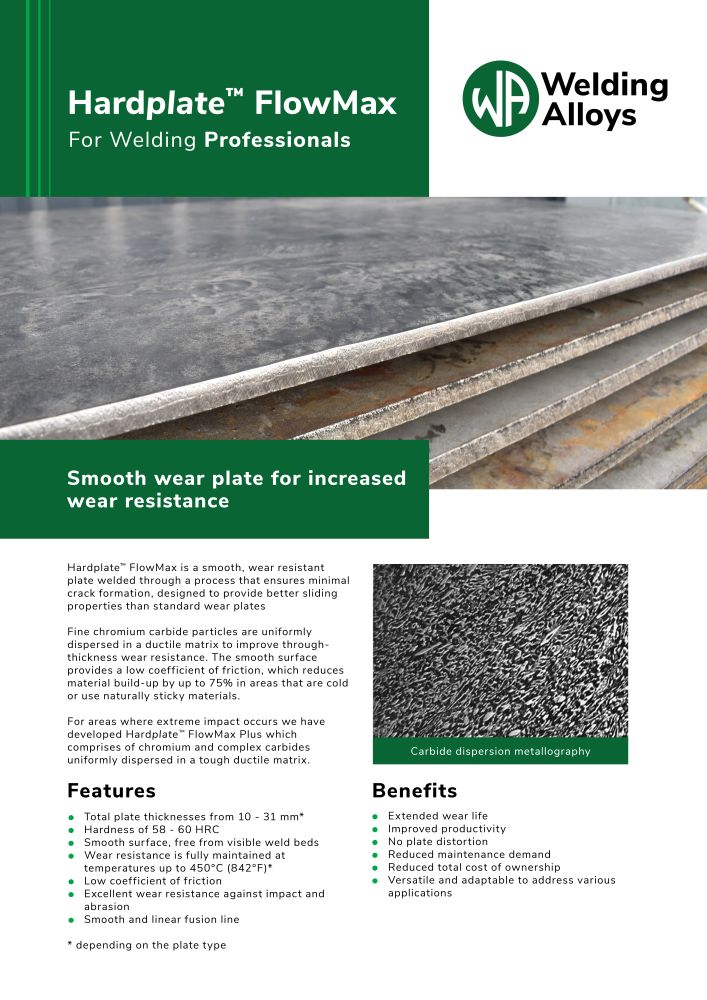

Hardplate™ FlowMax | EN
Applications:
Ideally suited for use in areas of material transportation, where protection against severe impact and abrasion is essential.
Features
- Total plate thicknesses from 10 to 31 mm
- Hardness of 59 – 62 HRC
- Smooth surface free from cracks and visible weld beads
- Wear resistant properties are fully maintained at temperatures of up to 450°C (842°F)
Benefits
Specifications:
- Plates are supplied in flat product form, or as rolled pipe and tube with the minimum rolling radius taken into account.
- Hardplate™ FlowMax and Hardplate™ FlowMax Plus can also be supplied as pre-cut profiles to drawings or as manufactured components.
- Various fitment options are available upon request.
| Hardplate™ FlowMax | Hardplate™ FlowMax Plus |
|---|---|
| Consistent and uniform carbide dispersion in the overlay weld material improves through-thickness wear resistance and properties.
Keeps its outstanding properties up to 300°C. Provides excellent resistance to impact and abrasion in general applications. |
Outstanding wear resistant properties are achieved through the formation of primary and eutectic chromium and complex carbides.
Keeps its outstanding properties up to 450°C. Suitable for applications where severe abrasion and impact occur. |
| Smooth surface free from cracks and major ripples | |
| Hardness 59 – 62 HRC | Hardness 59 – 62 HRC |
| Dimensions | |
| 3000 mm (L) x 1000 mm (W) & 3000 mm (L) x 600 mm (W) |
3000 mm (L) x 600 mm (W) |
| Thickness | |
| Base plate: 5 to 11 mm Coating: 5 to 17 mm |
Base plate: 11 mm Coating: 17 to 20 mm |
| Other sizes available on request | |
